RASCOpump injection pumps

RASCOpump injection pumps have been specially selected and tested for use together with RASCOR injection materials. With these pumps we guarantee a smooth application of our RASCOflex products. In addition to the pump, we also offer service and repair kits for ongoing operation in the event that something should break.

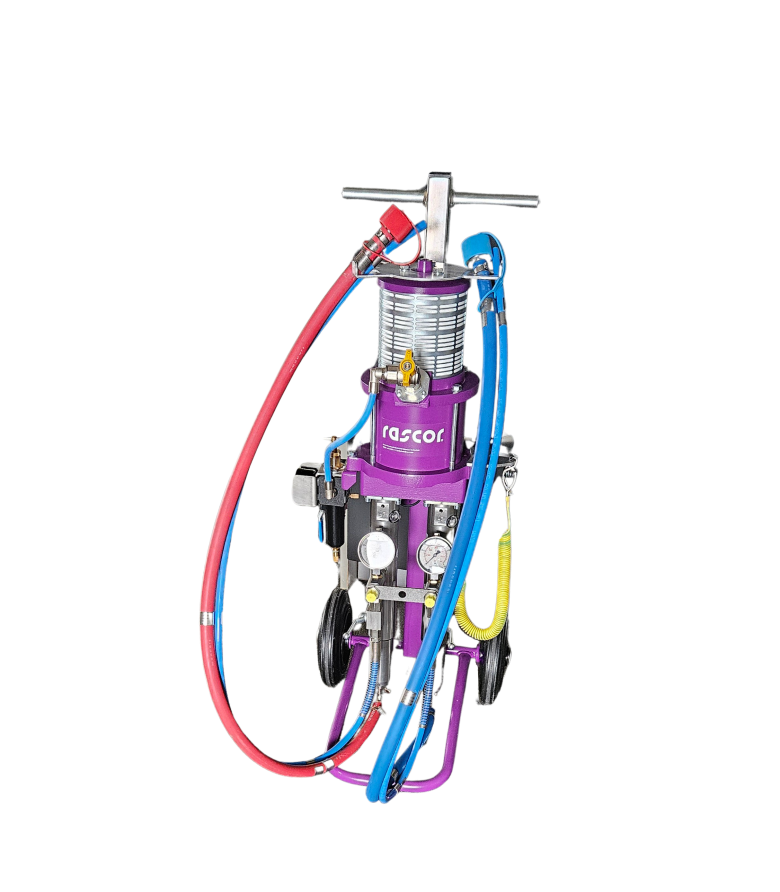

RASCOpump HJP 14 II-22

The RASCOpump HJP High-Pressure grouting machine is a two-component high-pressure pump for the injection of acrylic, polyurethane or silicate grouts.

The pump delivers 840 litres per hour at a pressure of up to 200 bar. The pressure ratio is 25:1.


Features

  • continuous flow control
  • continuous pressure control
  • all material carrying parts are made of stainless steel
  • long life tome
  • easy and cheap maintenance
  • Technical Data Sheet RASCOpump HJP 14 II-19 (AY)
  • Operating Manual RASCOpump HJP 14 II-19 / III-20 (AY)

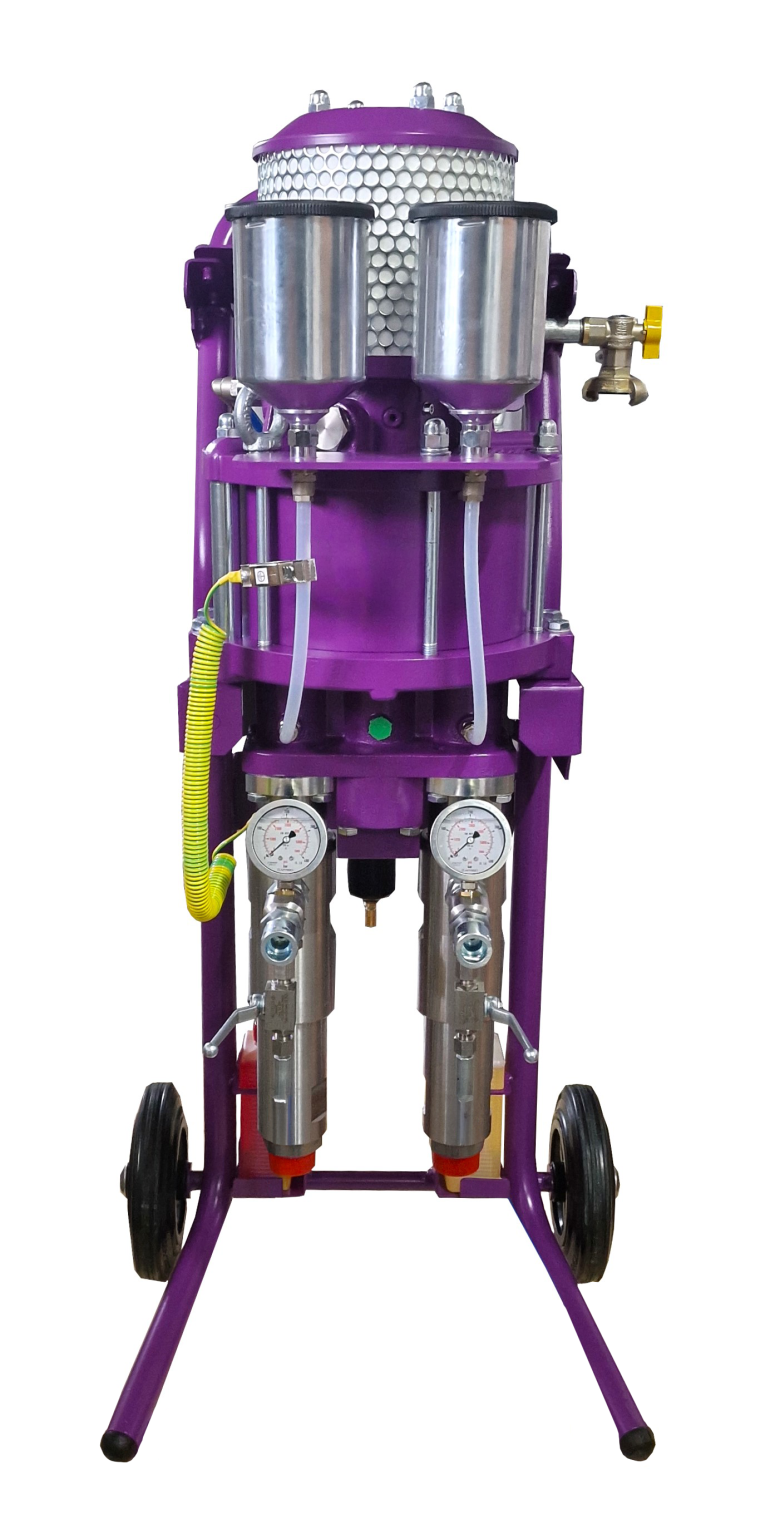

RASCOpump HJP 14 III-20 (AY)

The RASCOpump HJP High-Pressure grouting machine is a two-component high-pressure pump for the injection of acrylic grouts.

The pump delivers 1500 litres per hour at a pressure of up to 120 bar. The pressure ratio is 15:1. Thanks to the additional flushing pump, injection materials that cannot use any components for flushing can also be injected without interrupting the operation of the unit.

  • Operating Manual RASCOpump HJP 14 II-19 / III-20 (AY)
  • Technical Data Sheet RASCOpump HJP 14 III-20 (AY)
