Hydrophilic systems

RASCOtight hydrophilic systems – self-swelling preventive joint sealing solution

RASCOtight hydrophilic products increase in volume when exposed to water. This expansion creates pressure against the adjacent concrete, ensuring a watertight seal. RASCOtight expanding products can be used for construction joints or penetrations. Some products are self-adhesive, while others are mechanically fixed or attached with adhesive (RASCObond assembly adhesive). Installation must always be seamless to create a closed system. To prevent premature swelling of the expanding profiles, they must be protected from precipitation until the concrete is poured. Swollen profiles must not be embedded in concrete.



Further information can be found in our product overview or product catalog:

RASCOtight Hydrophilic Channel

The RASCOtight Hydrophilic Channel is a combination of an injection channel and a swelling profile. The swelling profile provides the primary seal, while the injection channel allows for simple, targeted re-injection of any defects.

Applications:
The swelling channel is suitable for sealing all visible construction joints in general building construction and civil engineering projects.

Technical Data Sheet RASCOtight Hydrophilic Channel

Installation instructions RASCOtight Hydrophilic Channel

RASCOtight Hydrophilic Strip

RASCOtight QVE Hydrophilic Strip is a water-expanding sealing profile made of vulcanized elastomers. A protective coating over the swelling tape delays the initial swelling during installation. RASCOtight QVE hydrophilic strip (SK) is also available in a self-adhesive version.



Applications:
RASCOtight QVE Hydrophilic Strip is suitable for sealing construction joints in general building construction and civil engineering, as a supplement to other sealing systems, for penetrations, pipe entries, and shafts.

Technical Data Sheet RASCOtight QVE Hydrophilic Strip

Technical Data Sheet RASCOtight QVE SK Hydrophilic Strip

Installation instructions RASCOtight QVE Hydrophilic Strip

Installation instructions RASCOtight QVE SK Hydrophilic Strip

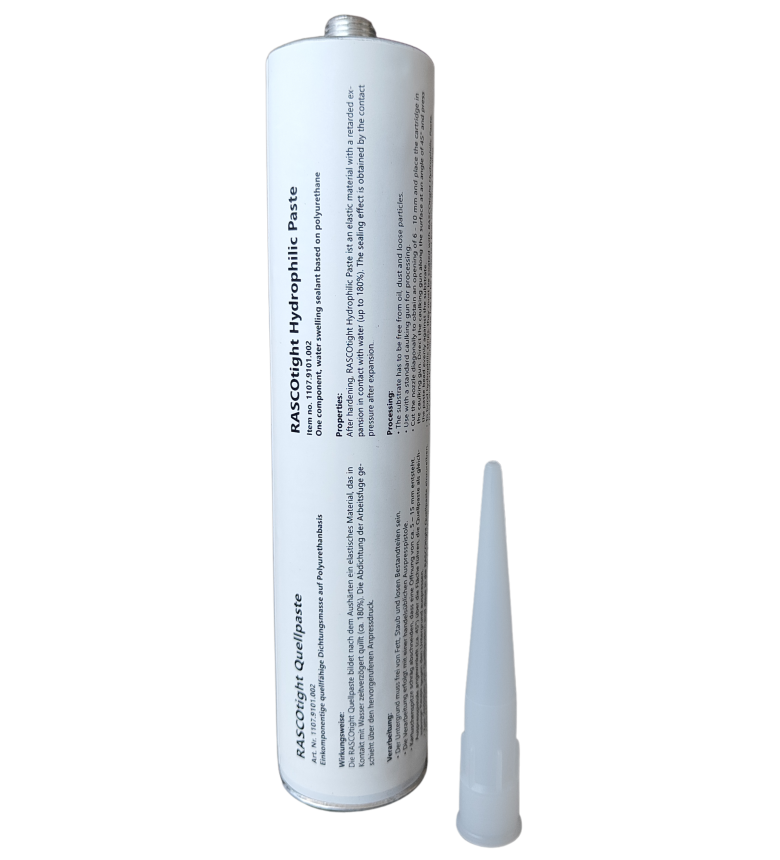

RASCOtight Hydrophilic Paste

RASCOtight Hydrophilic Paste is a one-component, swellable polyurethane-based sealant.

Applications:

In addition to standard joint sealing, RASCOtight Hydrophilic Paste is
particularly suitable for sealing penetrations with complex geometric shapes, such as steel profiles, anchor heads, cable penetrations, etc.

Technical Data Sheet RASCOtight Hydrophilic Paste

Safety Data Sheet RASCOtight Hydrophilic Paste

Installation instructions RASCOtight Hydrophilic Paste

RASCOtight Hydrophilic Tie Bolt Plug / Gasket

RASCOtight Hydrophilic Tie Bolt Plugs and Gaskets are water-expandable sealing plugs made of special acrylic polymers.



Applications:
RASCOtight Hydrophilic Tie Bolt Plugs and Gaskets are used to seal formwork spacers made of plastic or fiber cement.

Technical Data Sheet RASCOtight Hydrophilic Tie Bolt Plug

Technical Data Sheet RASCOtight Hydrophilic Gasket

Installation instructions RASCOtight Hydrophilic Tie Bolt Plug

RASCOtight QB F2.0

RASCOtight QB F2.0 is a water-swelling sealing profile based on
prepolymerized acrylate. This chemical base ensures unlimited reversibility under load changes (wet/dry).

Applications:
RASCOtight QB F2.0 is designed for the repair and sealing of expansion joints with relatively large movements, for all types of construction.

Technical Data Sheet RASCOtight QB F2.0
